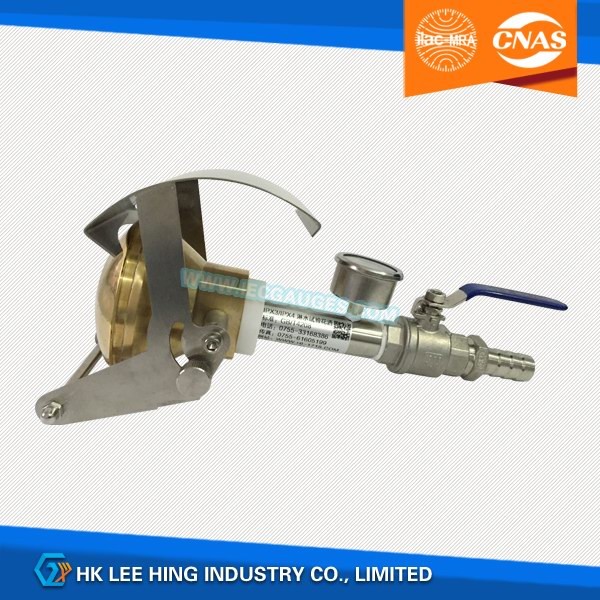

Spray Nozzle IEC 60529 IPX3 IPX4

Item No.: LX-IPX34H
Include CNAS & ILAC Calibration Certificate
E-mail: sales@iecgauges.com
Made in China
Please contact us for more detailed pdf files.

Spray Nozzle IEC 60529 IPX3 IPX4

Introduction:

It's strictly designed according to IEC60529 Figure 5, Used to test the waterproof performance of appliance and electric appliance with the rain protection function.

Application:

The IPX3 IPX4 Hand-held Spray Nozzle intended for use on specimens that will not fit within the diameter of the Oscillating Tube Tester.

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.

Specifications:

No.	Item	Parameter
1	Water supply	Water flow rate is 0.05 ~ 0.15 Mpa clean water without inclusion.
2	Spray nozzle parameters	External diameter: Ф102 mm spherical diameter: SФ75.5 mm There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total. The hole diameter: Ф0.5 mm It is made of brass.
3	Reference	IEC60529 IPX3 IPX4.
4	Baffle	Removable
5	Pressure gauge	0~0.25MPa
6	Site requirements	Dedicated IP waterproof test room, The ground should be flat with illumination, With good function of inflow and drainage.
